| Product Model |

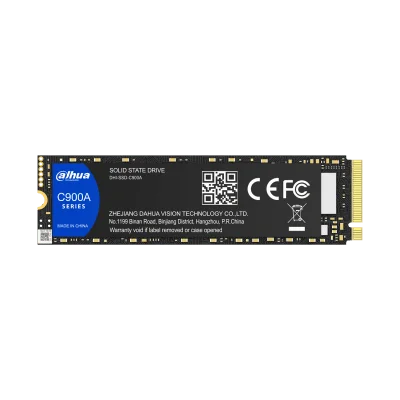

DHI-SSD-C970AN2000G |
| Capacity1 |
2 TB |
| Form Factor |
M.2 NVME |
| Port |
PCIe Gen 3.0 x 4 |
| Net Weight |
Max 8 g (0.02 lb) |
| Product Dimensions2 |
80.0 mm × 23.0 mm × 4.8 mm (3.15″ × 0.91″ × 0.19″) |
| Packaging Dimensions |
140.5 mm × 105.5 mm × 15.5 mm (5.53″ × 4.15″ × 0.61″) |
| Memory Component |
3D TLC |
| Power Consumption2 |
2848 mW (max) |
|
528 mW (idle) |
| S.M.A.R.T |
Support |
| TRIM |
Support |
| Garbage Collection |
Support |
| Sequential Read2 |
Up to 2000 MB/s |
| Sequential Write2 |
Up to 1450 MB/s |
| 4K Random Read2 |
Up to 160000 |
| 4K Random Write2 |
Up to 200000 |
| MTBF |
1,500,000 hours |
| Operating Temperature |
0°C to 70°C (32°F to 158°F) |
| Storage Temperature |
–40°C to 85°C (–40°F to 185°F) |
| Operating Humidity |
5%–95% (non-condensing) |
| Vibration Resistance |
7–800 Hz, 3.08 G |
| Shock Resistance |
1500 G/0.5 ms (half sine wave) |
|
|
